Flap barrier

Functions and features

• a compact electro-mechanical design with unique drive and a self-lock mechanism
• automatic detection for malfunction
• input interface for dry contact and switch signal connection
• adjustable auto-delay closing
• infrared photocells for safety access
• alarm for unauthorized access and no access against passenger flow
• anti-reversing passing
• auto closing when power on
• auto open and free access when power off
• adjustable access directions
• emergency interface available
• traffic light indicating passenger access

Technical data

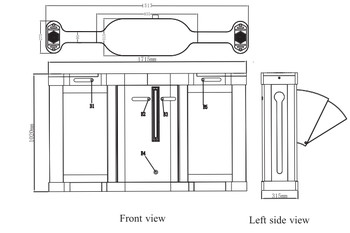

• 1. Housing dimension: bridge type bevel angle 1400*270*1000mm
• 2. Flap arm length: 275mm
• 3. Max arm width: 900mm
• 4. Housing material: stainless steel 304
• 5. Power supply/frequency: AC220V±10%, 50HZ
• AC110±10%, 60HZ
• 6. Drive motor: 12V direct current brush motor
• Flow speed: 25~30/minute
• Input interface: +5V electric level signal or ＞100ms impulse signal, drive current >10mA, dry contact (COM NO).
• Opening and closing time: 0.5 minute
• Power on and reset time: 3s
• IP protection degree: IP 32
• Working environment:
• Inner and outer (with shelter)
• Temperature: -25℃~+50º℃
• Relative humidity: ≤90%
